Test benches for refrigeration technology componentsfor industrial, commercial and other applications.

Test benches specifically developed according to customer requirements for refrigeration technology components can be used for R&D tasks, reference measurements, or quality assurance. High-quality sensors and measurement systems are as standard as norm-compliant, automatic operation and evaluation of the measurement results, which leads to significant cost savings.

ILK test benches can be built for all common refrigerants of safety classes A1, A2, A2L, and A3, such as R134a, R744 (CO2), R1234yf, and R290 (propane). For the measurement of heat exchangers for various media (air, water, brine, refrigerants) with and without phase change, we offer test benches according to the standards DIN EN 306, DIN EN 1117, DIN EN 1118, or according to your requirements.

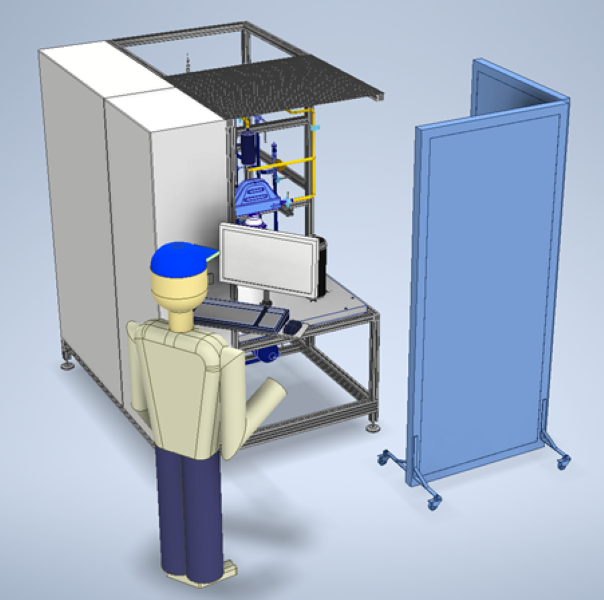

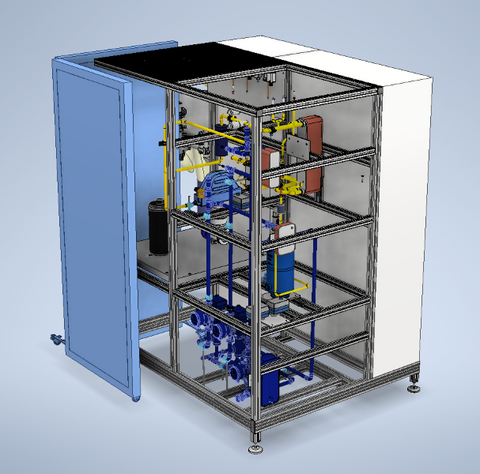

For performance measurements and lifetime testing of other components in the refrigeration circuit (solenoid valves, thermostatic or electronic expansion valves, filters, etc.), we can develop and build corresponding test benches for you. We have experience with test rigs in the power range from 100 W to 200 kW. The complete package includes the process engineering plant, the combined electrical/automation system with ET/MT cabinet, and the complete test bench software, which, as an integral part of the test bench, guarantees both automatic operation and the evaluation of the measured values in accordance with applicable measurement standards. The 3D visualization allows adaptation to the spatial conditions at the customer's site.
